Bellow Suction Cup B Series
Bellow Suction Cup B Series

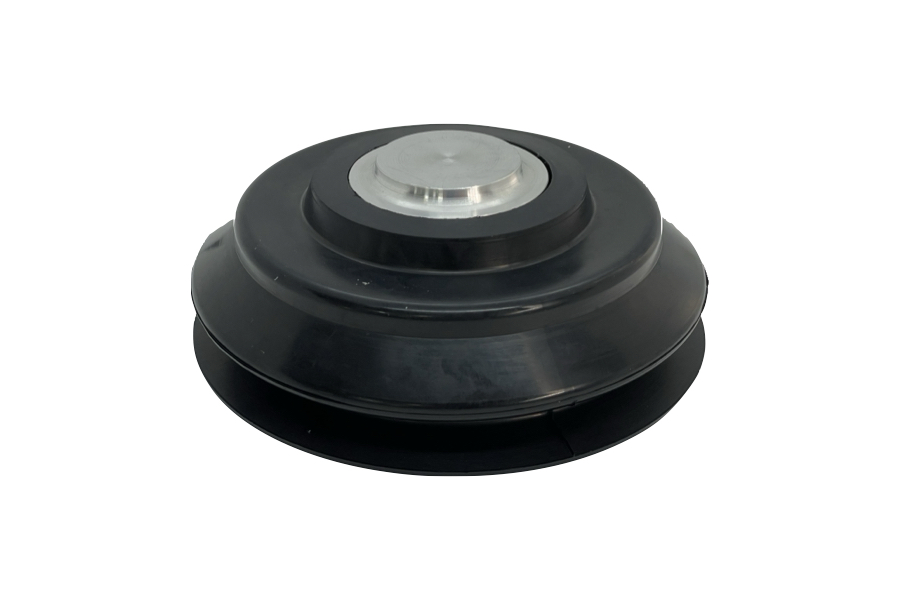

The bellow suction cup Type BBSC series B is very flexible and developed for universal use. The seal is in NBR black at approx. 60 Shore and has a diameter of 150/ 210/ 250 mm. Suitable for curved and smooth surfaces. Good height compensation due to the 1.5 bellows. As a result of the flexible construction, it is suitable for stacking glass sheets in handling systems. The seal is attached onto the aluminum base plate and its residual stress will keep it in place.
Technical Data - B Series Suction Cup
- Flexible, more resilient bellow suction cup with 1.5 folds, short sealing lip and inner support strips for use in glass storage systems
- Diameter: 150 mm, 210 mm and 250 mm
- Replaceable seal (held on the base plate by internal stress)
- Aluminium base plate
- Drilling template available on customer request
| Type | Diameter (mm) | Suction Cup Material | Vertical Carrying Load (kgs) | Horizontal Carrying Load (kgs) |
|---|---|---|---|---|
| BBSC 150 B | 150 | NBR | 51 | 102 |
| BBSC 210 B | 210 | NBR | 91 | 182 |
| BBSC 250 B | 250 | NBR | 110 | 228 |
EUROTECH vacuum technologies offers a comprehensive range of vacuum components as well as complete handling and transport solutions. Our further range includes both customer-specific vacuum suction cup portfolio or solution tailored to the customer’s requirements.
More details about vacuum components, please visit our general catalog.
