Bellow Suction Cup

Bellow Vacuum Suction Cup

Bellow suction cup is suitable for handling uneven and structured surfaces. The folds from the suction cups help stably handle workpieces in different directions and angles. Most importantly, in most of handling devices, the bellows help compensate the height difference of the workpieces. There are a wide selection of materials for suction cups.

Universal design of 1.5, 2.5 folds of bellows types vacuum suction cups are attached nicely with fittings. The design of concave and convex shapes allows for less-complex and light installations, reducing the needs of engineering time for maintenance. NBR and Silicone are the most commonly applied materials for this bellow type suction cups.

Selection of Bellow Suction Cup

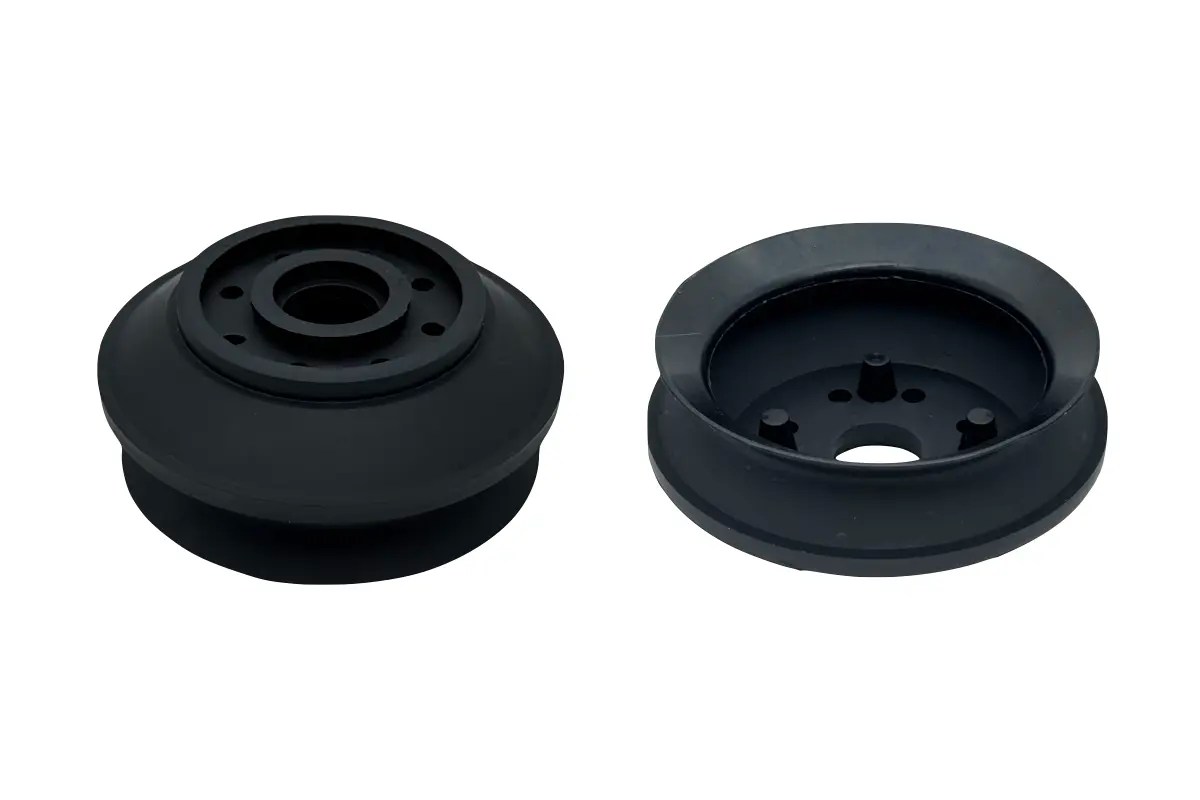

bellow-suction-cups

BBSC B

Diameter: 150mm, 210mm, 250mm
Material: NBR

bellow-suction-cups

BBSC CO

Diameter: 110mm, 150mm
Material: NBR, Silicone

bellow-suction-cup

BBSC CO - 3.5 folds

Diameter: 150mm
Material: NBR

bellow-suction-cup

BBSC 60 x 140

Dimension: 60mm x 140mm
Material: NBR, Silicone

bellow-suction-cups

BBSC R

Diameter: 80mm to 250mm
Material: NBR

bellow-suction-cup-150

BBSC 150 R

Diameter: 150mm
Material: NBR

bellow-suction-cup-200

BBSC 200 R

Diameter: 200mm
Material: NBR

bellow-suction-cup-250

BBSC 250 R

Dimension: 250mm
Material: NBR

bellow-suction-cup-150-BY

BBSC 150 BY

Diameter: 150mm
Material: NBR

bellow-suction-cup-by

BBSC 200 BY

Diameter: 200mm
Material: NBR

bellow-suction-cup

BBSC 290 BY

Diameter: 290mm
Material: NBR

bellow-vacuum-suction-cups

BBSC 285 G-L

Diameter: 285mm
Material: NBR

bellow-suction-cup

BBSC 350

Diameter: 350mm
Material: NBR

suction-cup-covers-mtc

Suction Cover Cover MTC

Diameter: 20mm to 550mm

bellows-suction-cup-austria

BBSC 285 G-L Replaceable

Diameter: 285mm
Material: NBR

bellows-suction-cup-austria

BBSC 285 G-L Vulcanized

Diameter: 285mm
Material: NBR

EUROTECH vacuum technologies offers a wide range of vacuum components and spare parts as well as complete handling and transport solutions. Our further range includes both customer-specific industrial vacuum suction cup portfolio or solution tailored to the customer’s requirements.
