Laminated Glass Cutting
Vacuum Suction Cups for Laminated Glass Cutting
Laminated glass cutting lines require reliable vacuum handling throughout loading, positioning, cutting, breaking, and transfer processes. Vacuum suction cups help securely grip laminated glass while allowing precise movement and positioning throughout the production line.
Different cup dimensions, shapes, and materials can be selected according to the glass size, weight, surface condition, machine configuration, and handling requirements. Explore our complete vacuum suction cups for glass handling for other glass processing applications.
For help selecting the appropriate cup size, material, and configuration, see our Vacuum Suction Cup Selection Guide →
Vacuum Handling in Laminated Glass Cutting Lines
- Glass Loading System – Automatically loads glass sheets onto the cutting table.
- Heating Station – Softens the interlayer to enable clean separation after cutting.
- Cutting Bridge – Uses precision cutting wheels or laser technology to score the glass surface.
- Breaking & Separation Unit – Applies controlled pressure to separate the glass along the cut lines.
- Edge Trimming Station – Removes excess interlayer for a smooth finish.
PU Vacuum Suction Cups for Laminated Glass Cutting

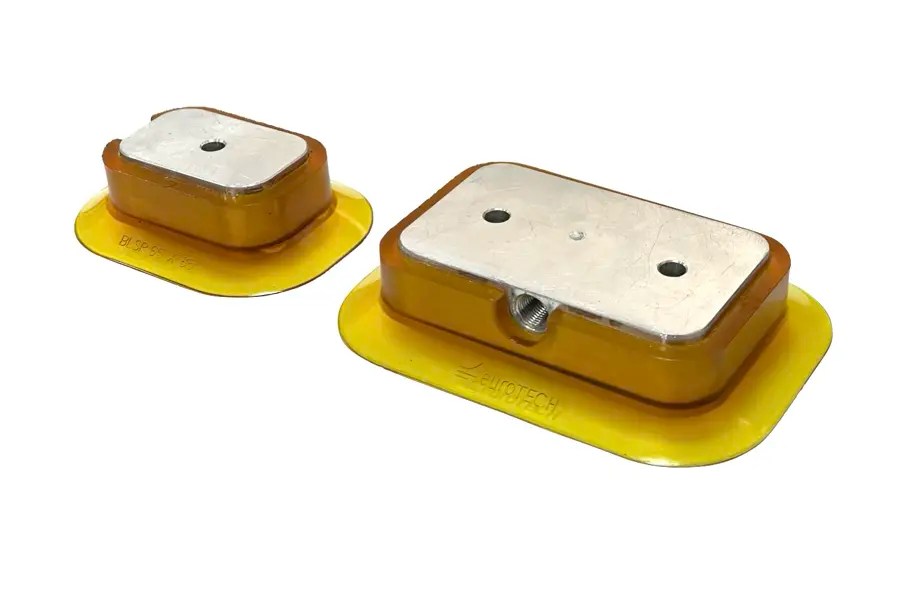

- PU vacuum suction cups are commonly used in selected laminated glass cutting and processing applications. EUROTECH offers different cup dimensions and configurations for glass handling and machine replacement requirements.
- The following models are available for selected laminated glass cutting applications:
| Type | Diameter (mm) | Suction Cup Material | Vertical Carrying Load (kgs) | Horizontal Carrying Load (kgs) |
|---|---|---|---|---|
| BLSP 68×168 PU | 68 x 168 | PU | 23 | 50 |
| BLSP 70×85 PU | 70 x 85 | PU | 9 | 19 |
| BLSP 85×120 PU | 85 x 120 | PU | 20 | 40 |
| BLSP 65×85 PU | 65 x 85 | PU | 8 | 17 |
| BLSP 40×165 PU | 40 x 165 | PU | 9 | 19 |
| BSC 95R PU | 95 | PU | 19 | 38 |
| BLSP 230 L PU | 230 | PU | 116 | 232 |
Vacuum Cups for Laminated Glass Cutting Machines
EUROTECH provides adaptable vacuum suction cups and related replacement solutions for selected laminated glass cutting and processing machines. Available designs include different dimensions, mounting configurations, and PU cup types for selected equipment from manufacturers such as LiSEC and Intermac.
If you are looking for a replacement suction cup, send us the existing part number, cup dimensions, drawing, or a photo of the installed component to help us identify a suitable solution.
BLSP 68 x 168 LS
Diameter: 68x168mm
Material: PU
(adaptable types for LiSEC machines)
BLSP 65 x 85 IMC |
BLSP 85 x 120 IMC
Diameter: 65x85mm, 85x120mm
Material: PU
(adaptable types for Intermac machines)
BLSP 40 X 165 IMC
Diameter: 40x165mm
Material: PU
(adaptable types for Intermac machines)
BSC 95 R PU
Dimension: 95mm
Material: PU
(adaptable types for LiSEC machines)
BLSP 230 L PU
Dimension: 230mm
Material: PU
(adaptable types for LiSEC machines)
Selected EUROTECH suction cups are also available as adaptable solutions for specific LiSEC laminated glass cutting applications.
Glass Conveyor Rollers for Laminated Glass Transfer
Laminated glass cutting lines often include multiple transfer stages between loading, cutting, breaking, separation, and downstream processing. Where roller conveyors are used, worn or damaged rollers can increase maintenance time and interrupt material flow.
EUROTECH’s quick-change glass conveyor rollers use a two-piece modular design that allows individual rollers to be replaced with less disassembly of the conveyor shaft.
This can help simplify glass conveyor roller replacement and reduce maintenance time on suitable laminated glass processing and transfer equipment.
Learn How Quick-Change Conveyor Rollers Can Reduce Maintenance Downtime →
Reduce Suction Marks on Laminated Glass
Suction cup contact can leave visible marks, fingerprints, or contamination on glass surfaces during loading, cutting, and transfer. In laminated glass production, surface cleanliness can be particularly important because certain surfaces may become difficult or impossible to access for cleaning after further processing or lamination.
MTC suction cup covers provide a protective layer between the suction cup and the glass surface, helping reduce direct contact, contamination, and visible suction marks. This can help minimize additional cleaning and rework during glass processing.
