Vacuum Suction Cups

Industrial Vacuum Suction Cups

Vacuum suction cups use atmospheric pressure and vacuum pressure to grip and move objects for pick-and-place applications. And suction cups are easy to install and replace without damaging them. The industrial suction cups are made of rubber elastic material, a variety of materials are also available, suitable for any environmental needs. EUROTECH Taiwan is one of the key player in vacuum lifter parts and vacuum lifting solution. Our portfolio includes industrial vacuum parts and components in various of materials, dimensions and types for glass, sheet metal and wood lifting application. The shape of the base surface (round, oval, rectangular), type of supporting surface (grooves, burls, support bars) and internal volume of the seal play a major role.

From suction plates, flat and bellow vacuum cups to a wide range of vacuum components, EUROTECH TAIWAN offers the right components for every application. An adequate vacuum lifting solution increases the productivity and efficiency of production system through the optimal selection of vacuum cups.

We also provide vacuum lifter and tube lifter solutions for glass, wood and sheet metal industries.

Flat Suction Cup

Flat vacuum suction cups with round shape are the most commonly seemed industrial vacuum components especially fit for handling flat surface and workpieces. Industrial suction cups could introduce short cycle lifting thanks to their flat shape and small volume. The flat design work with performance on lifting products such as glass, wood, cardboard and metal sheets.

  • Universally applicable suction plate for smooth surfaces
  • Diameter: 3 mm to 810 mm available
  • Short, medium and long sealing lip and groove rubber support available
  • Replaceable seal design
  • Aluminium or steel base plate
  • Drilling template available on customer request
suction-plate

Suction Plates RL

Diameter: 120mm to 400mm
Material: NBR, Silicone, Viton

flat-suction-plates

Suction Plates PK

Diameter: 200mm, 280mm
Material: NBR Black

vacuum-pad

Suction Plates HE

Diameter: 100mm, 150mm, 200mm
Material: NBR, Silicone, Viton

vacuum-pad

Suction Plates NO

Diameter: 160mm, 230mm, 250mm
Material: NBR

vacuum-cup-for-thick-glass

200 PK Vulcanized

Dimension: 200mm
Material: NBR

vacuum-suction-cup-thick-glass

280 PK Vulcanized

Dimension: 280mm
Material: NBR

flat-suction-cup

BLSP 250 COP

Dimension: 250mm
Material: NBR

industrial-suction-cup-metal-sheet

Suction Plates XL

Dimension: 410mm x 810mm, 380mm x 500mm, 350mm x 600mm
Material: NBR

industrial-vacuum-suction-cups

Flat Suction Cups

Dimension: 68mm x 168mm
Material: PU

vacuum-suction-cup-metal-sheet

Suction Cups 180 x 580 L

Dimension: 180mm x 580mm
Material: NBR

vacuum-suction-cup-metal-sheet

Suction Plate XXL

Dimension: 410mm x 810mm
Material: NBR

suction-cup-covers-mtc

Suction Cover Cover MTC

Diameter: 20mm to 550mm

Bellow Suction Cup

Bellows vacuum suction cups come with round and oval shapes which are especially suited for handling concave/convex, uneven, curved and arched surfaces and workpieces. Vacuum fittings and components are available for customization.

  • Selection of 1.5, 2.5, 3.5 folds
  • Small, medium and long length sealing lip
  • Diameter: 11 mm to 350 mm available
  • Fast installation of connection nipple
bellow-suction-cups

BBSC B

Diameter: 150mm, 210mm, 250mm
Material: NBR

bellow-suction-cups

BBSC CO

Diameter: 110mm, 150mm
Material: NBR, Silicone

bellow-suction-cup

BBSC CO - 3.5 folds

Diameter: 150mm
Material: NBR

bellow-suction-cup

BBSC 60 x 140

Dimension: 60mm x 140mm
Material: NBR, Silicone

bellow-suction-cups

BBSC R

Diameter: 80mm to 250mm
Material: NBR

bellow-suction-cup-150

BBSC 150 R

Diameter: 150mm
Material: NBR

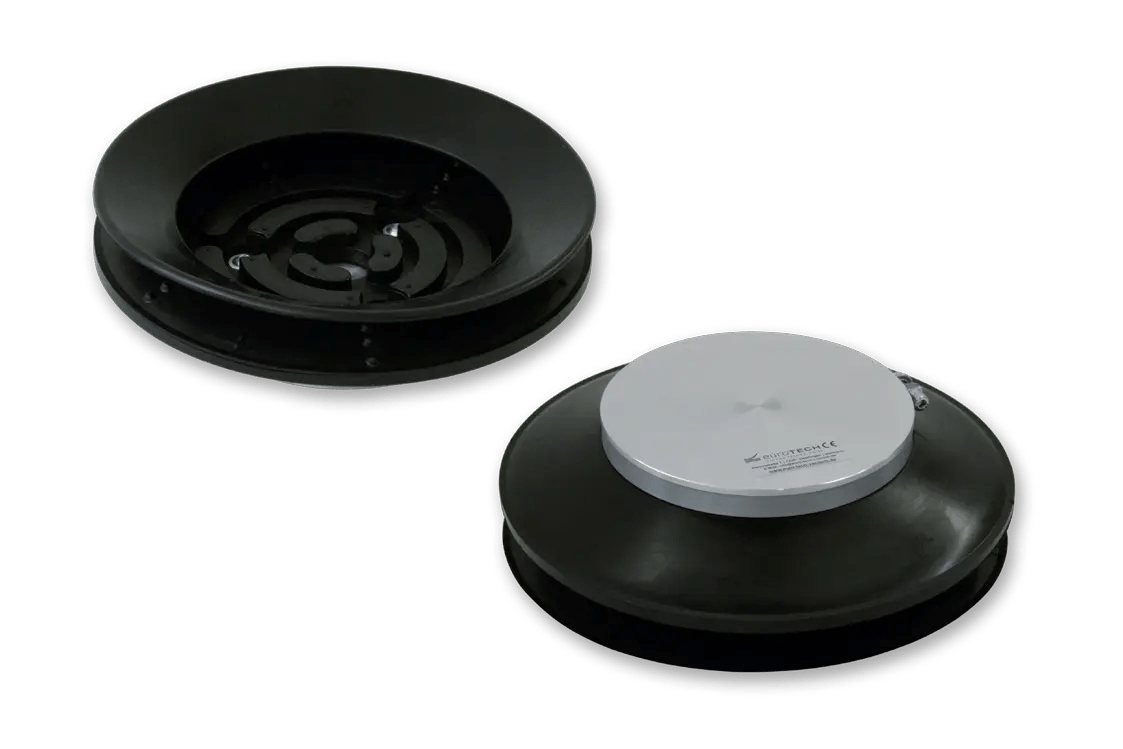

bellow-suction-cup-200

BBSC 200 R

Diameter: 200mm
Material: NBR

bellow-suction-cup-250

BBSC 250 R

Dimension: 250mm
Material: NBR

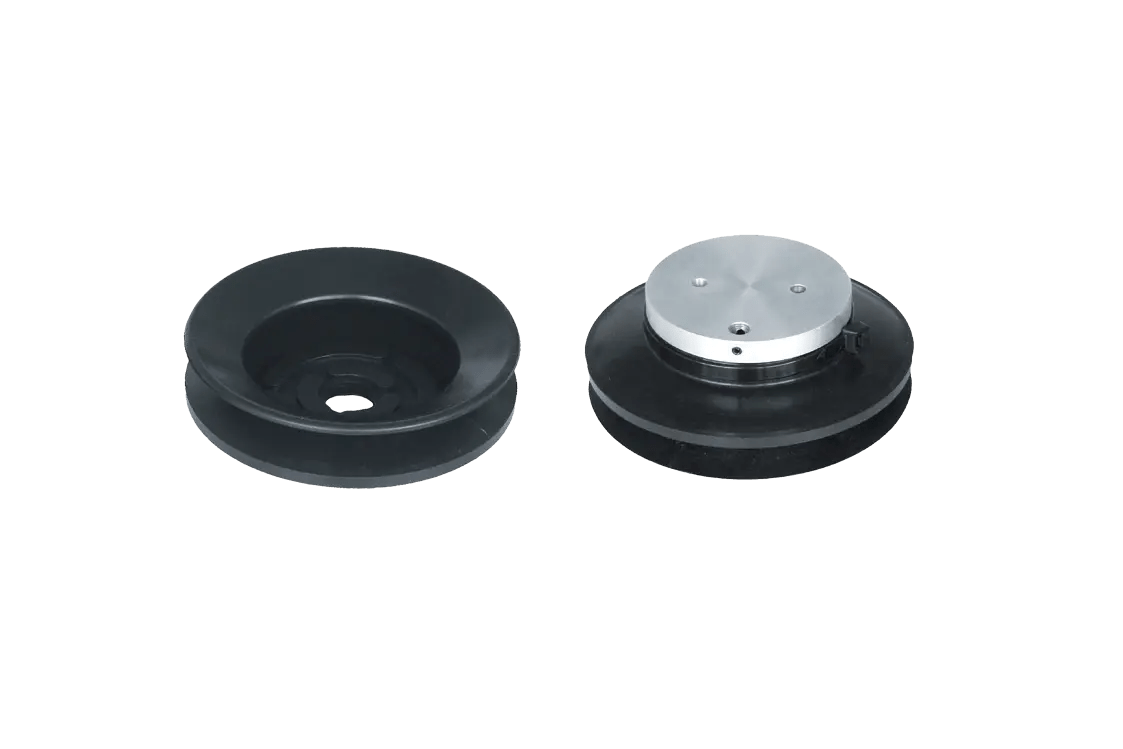

bellow-suction-cup-150-BY

BBSC 150 BY

Diameter: 150mm
Material: NBR

bellow-suction-cup-by

BBSC 200 BY

Diameter: 200mm
Material: NBR

bellow-suction-cup

BBSC 290 BY

Diameter: 290mm
Material: NBR

bellow-vacuum-suction-cups

BBSC 285 G-L

Diameter: 285mm
Material: NBR

Suction Cups for Sheet Metal

The XL and XXL series flat vacuum suction cups are suitable for handling large and heavy sheets and glass, such as float glass and metal sheets. Long sealing lip with stiffening ribs make the loading work of XL and XXL series flat suction cups safer when handling tilted or standing glass/metal sheets.

  • Universally applicable suction plate for smooth surfaces
  • Diameter up to 810 mm available
  • Short, medium and long sealing lip and groove rubber support available
  • Aluminium or steel base plate
  • Drilling template available on customer request
industrial-suction-cup-metal-sheet

Suction Plates XL

Dimension: 410mm x 810mm, 380mm x 500mm, 350mm x 600mm
Material: NBR

vacuum-suction-cup-metal-sheet

Suction Cups 180 x 580 L

Dimension: 180mm x 580mm
Material: NBR

vacuum-suction-cup-metal-sheet

Suction Plate XXL

Dimension: 410mm x 810mm
Material: NBR

Suction Plates

Suction plates are a combination of vacuum suction cups and base plates and suspension systems. To fulfill various industrial needs for degree of flexibility when lifting workpieces, suction base plate type A-P, type R-K, type Rigid, Pin-Valve (PV) design are engineered and developed. With the replaceable seal and clamping solutions, we could realize modular concept on vacuum system to deliver economic benefit for reducing inventory pressure and internal logistic cost. Vacuum fittings and components are available for customization.

  • Rigid Series for fixed suspension
  • A-P Suspension Series (10° pivoting on all sides)
  • R-K Suspension Series (10° pivoting on all sides)
  • PV (Pin-Valve) Series
suction-plate

BSP R Series A-P

Diameter: 110mm, 160mm, 250mm

suction-plate

BSP RL Series A-P

Diameter: from 120mm to 400mm

vacuum-suction-plate

BSP RL Series R-K

Diameter: from 120mm to 400mm

vacuum-suction-plate

BSP SCP Series Rigid

Dimension: 142mm, 192mm, 232mm

EUROTECH vacuum technologies offers a comprehensive range of vacuum components as well as complete handling and transport solutions. Our further range includes both customer-specific vacuum suction cup portfolio or solution tailored to the customer’s requirements.

Download Catalog

For more vacuum product portfolio, please download catalog for details.

vacuum-suction-cup-catalog
