Vacuum Filters

A vacuum system consists of vacuum generators, vacuum distributors, vacuum hoses, industrial vacuum suction cup and connections. Vacuum filters help protect sensitive vacuum pump, vacuum reservoirs, vacuum blowers with air pre-filtering. The right selection of the filter increase cost-efficiency on a lifting system.

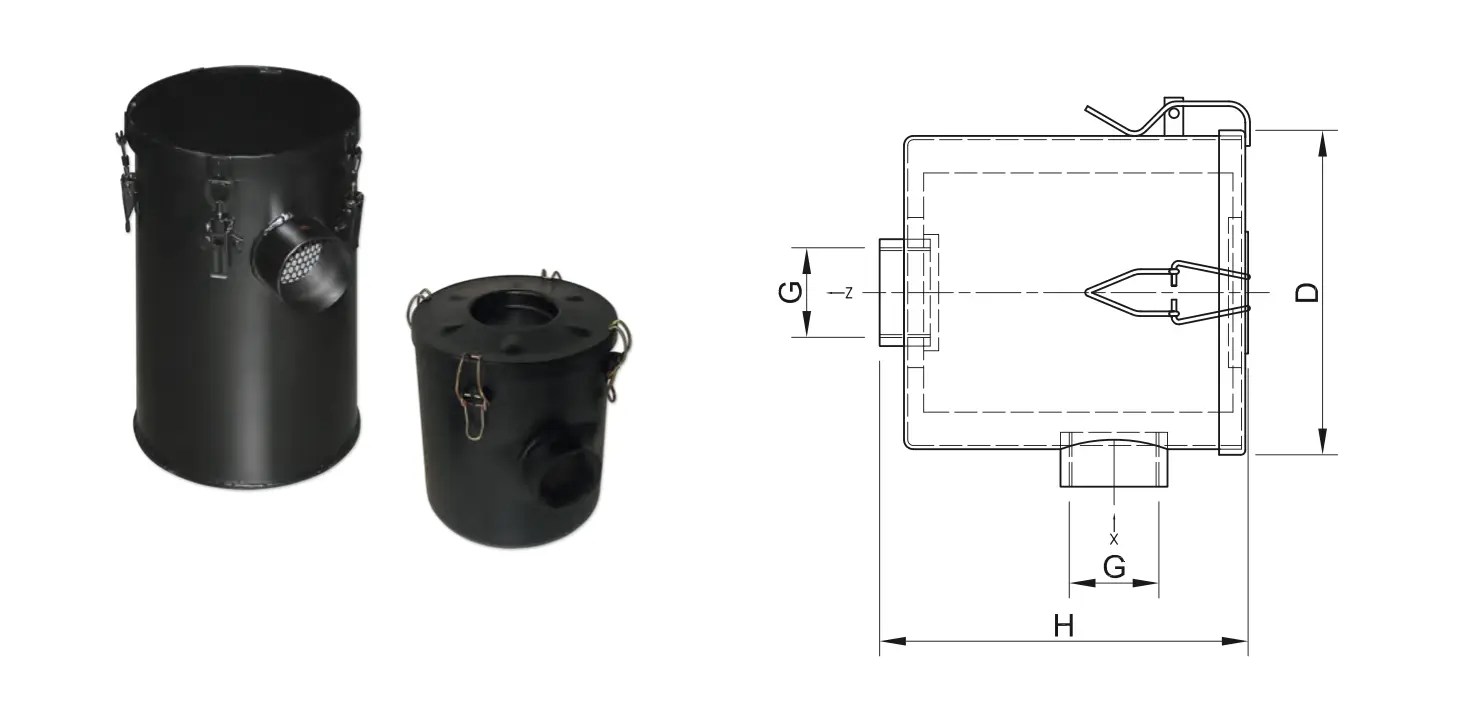

Vacuum Filters Serie BVF

The filter Series BVF is made from sheet metal and powder coated. A replaceable filter cartridge is installed for easy cleaning and maintenance. The connection thread starts with G 3/8” inside thread and goes up to G 4” inside thread. The BVF range covers 11 vacuum filters with flow range from 12 m³/h up to 1260 m³/h.

Protect the vacuum circuit from dirt
Made of painted steel sheet
Filter cartridge can be quickly replaced without tools

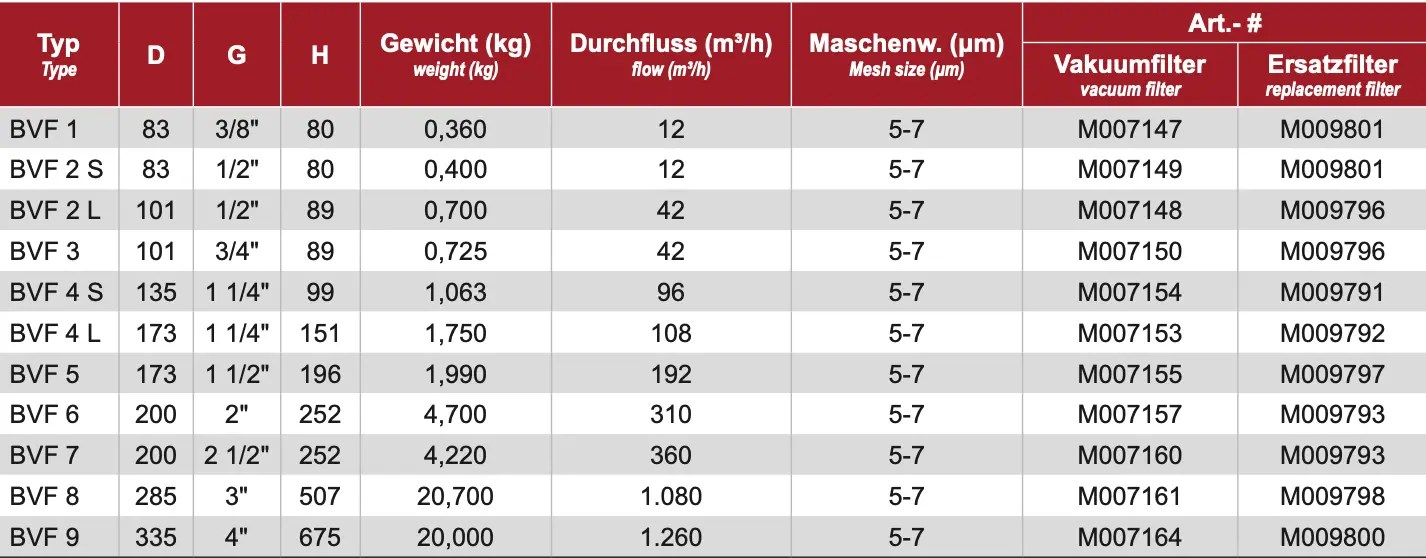

Technical Data

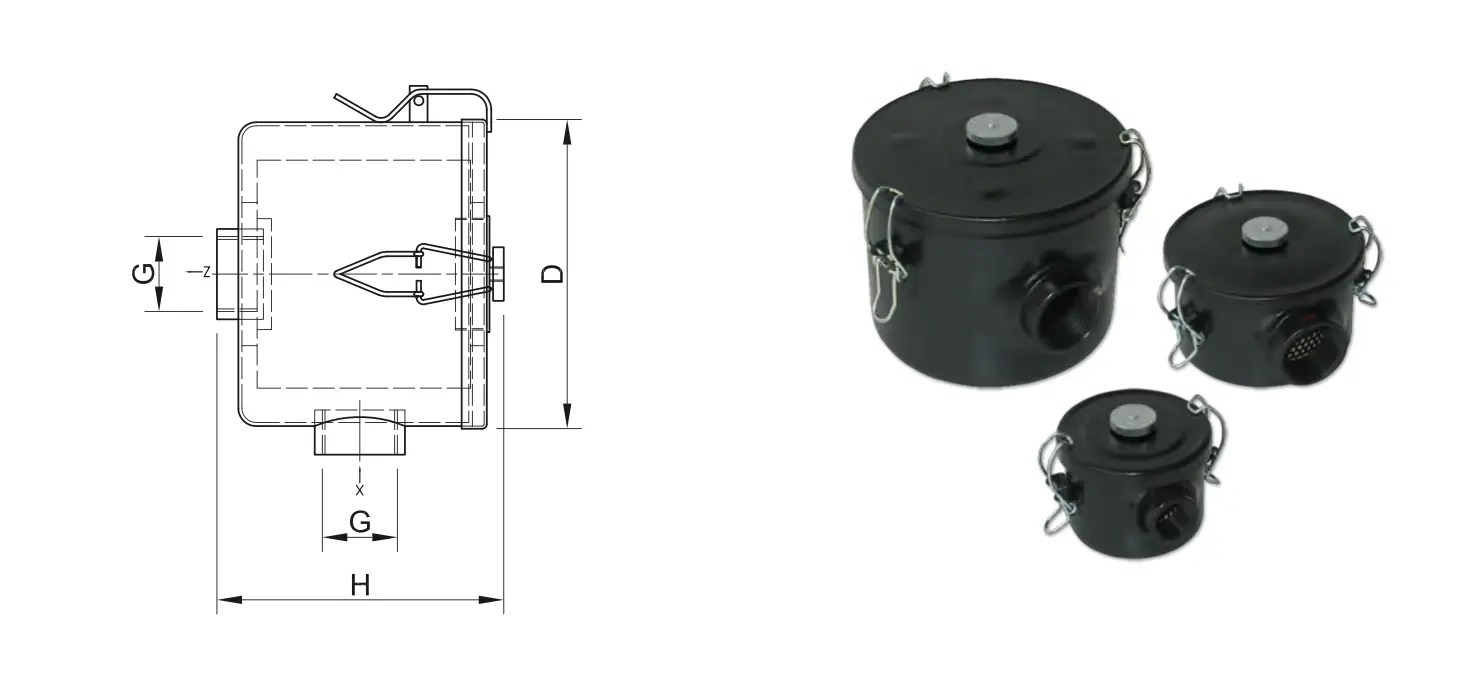

Vacuum Filters Series BVF-D

Protect the vacuum circuit from dirt
Designed for compressed air pulses during forced ventilation in the vacuum circuit (max. 2 bar)
Made of painted steel sheet
Filter cartridge can be quickly replaced without tools

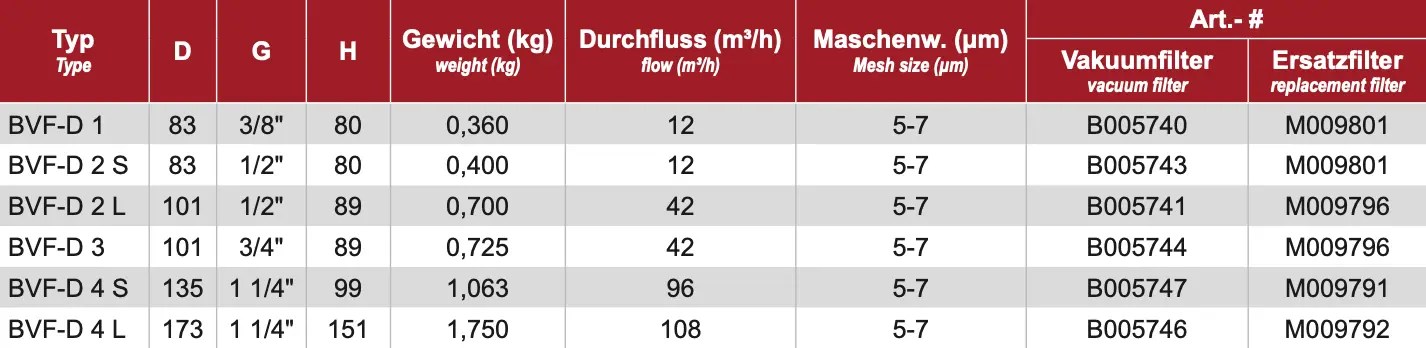

Technical Data

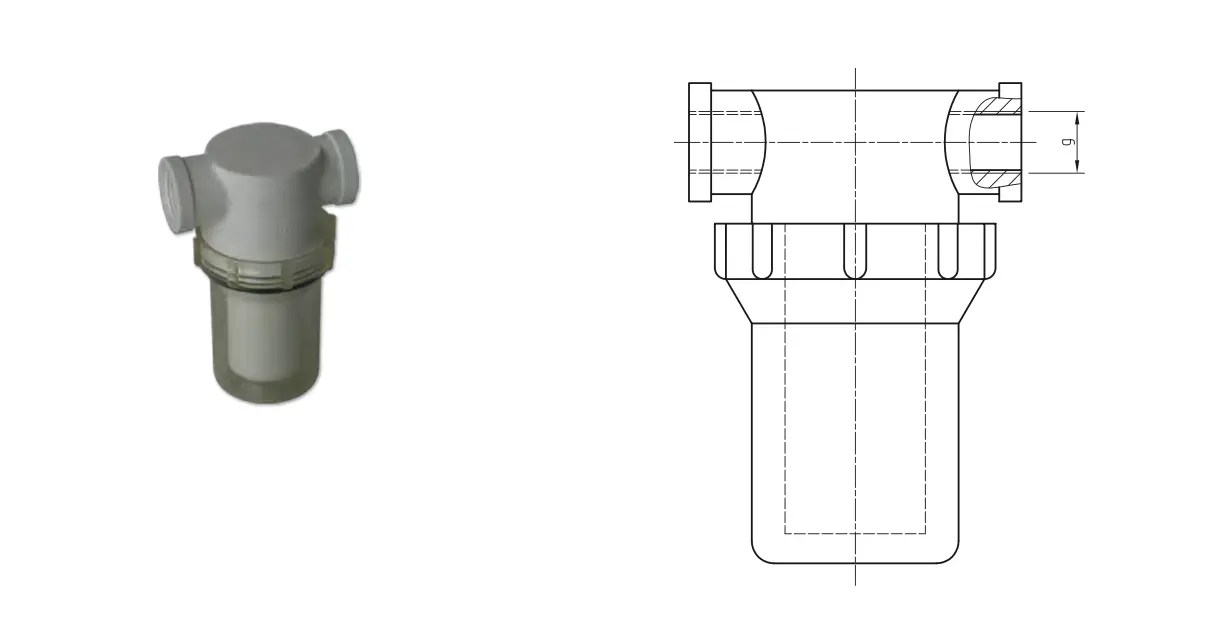

Series BVF-K

The BVF-K series are light-weight vacuum filters with replaceable filter cartridge made of Polyethylene. The filter cartridge is easy to clean and replace. The connection thread starts with G 1/8” inside thread and goes up to G 3/4” inside thread. The BVF-K range covers 5 vacuum filters with flow range from 2,7 m³/h up to 35,7 m³/h. No Tools are needed to open and clean the vacuum filter.

Protects the vacuum pump from dirt
Housing made of plastic
The inner filter element is made of a special polyethylene (suitable for slightly moist environments)
Filter cartridge can be quickly replaced without tools

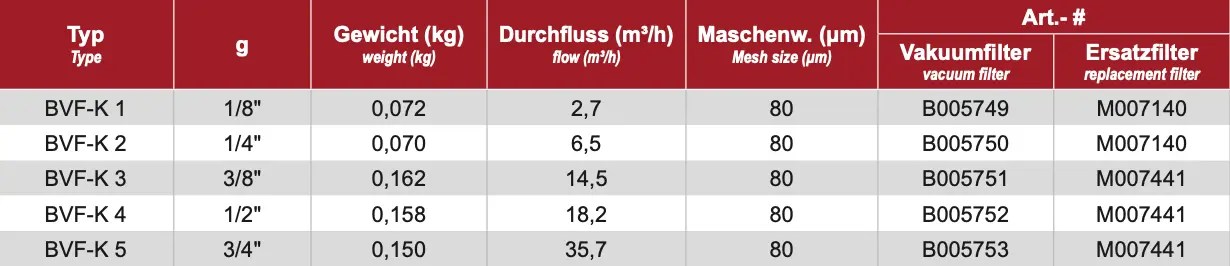

Technical Data

Vacuum Filtration in Ejector Systems

EUROTECH vacuum technologies offers a comprehensive range of vacuum components as well as complete handling and transport solutions. Our further range includes both customer-specific vacuum suction cup portfolio or solution tailored to the customer’s requirements.

More details about vacuum components, please visit our general catalog.

In an ejector-based gripping system, a suitable filter in the vacuum line helps limit contamination entering from the suction cups. Filter selection should account for airflow, pressure drop and the type of contamination. For related operating checks, see our guide to vacuum ejector installation and troubleshooting.
