Flat Suction Cup 150 CO Series​

Flat Suction Cup BSP Series CO

This special flat suction cup seal Type BSP series CO is often used in automatic stacking systems. The robust and massive seal is in NBR black at approx. 50 Shore and is suitable for a slightly rough surface. The seal is suitable for heavy glass plates. The suspension bolt and the base plate can be made to your specification. Quick change of the rubber seal by loosening the four screws from the inside of the seal.

Flat-Suction-Cup-150mm
Flat-Suction-Cup-150mm
Flat-Suction-Cup-150mm

CO Bellows Suction Cup

  • Robust suction plate for smooth and slightly coarse surfaces (metal sheets, wooden and glass panels)
  • Diameter: 120 mm, 150 mm and 200 mm
  • Long sealing lip and support strip
  • Seal with vulcanized steel ring (bolted with base plate)
  • Aluminium base plate
  • Drilling template available on customer request
TypeDiameter (mm)Suction Cup MaterialVertical Carrying Load (kgs)Horizontal Carrying Load (kgs)
BLSP 120 CO110NBR, Silicone2652
BLSP 150 CO150NBR, Silicone4794
BLSP 200 CO150NBR, Silicone82164

Full assembly with G1/4" thread

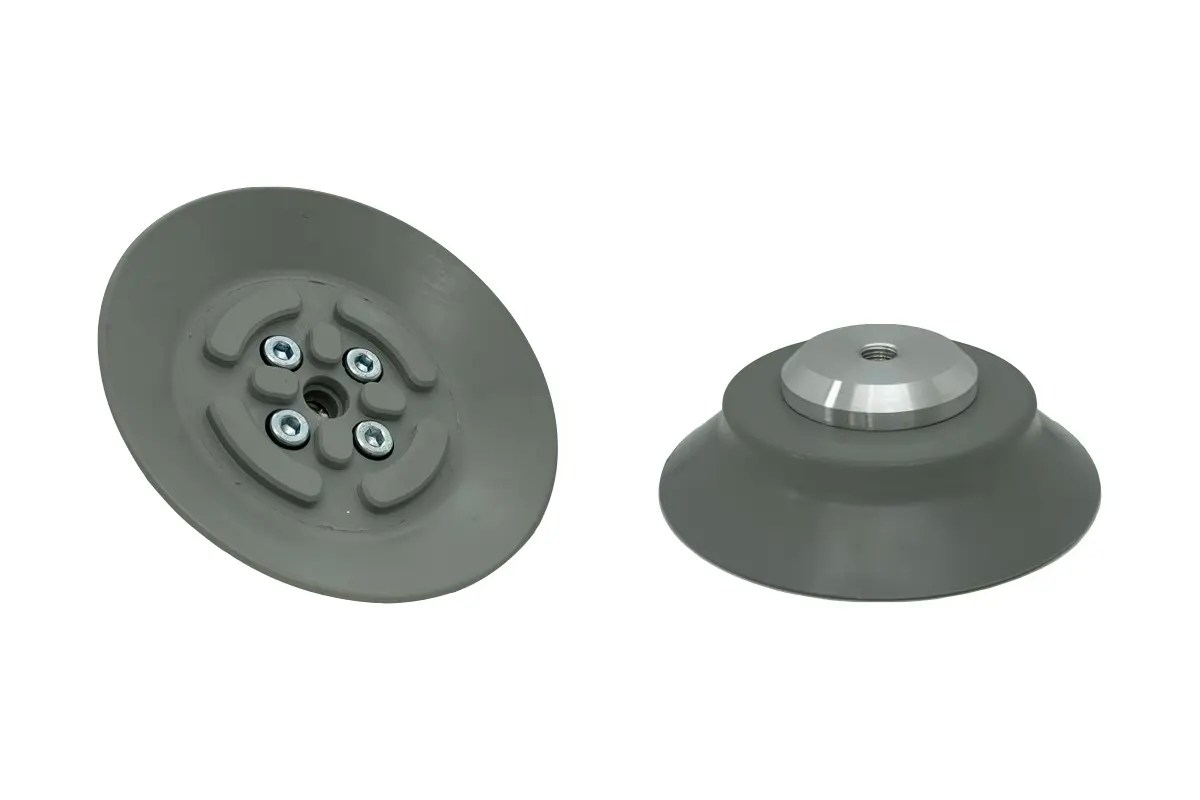

PFG-flat-suction-cups

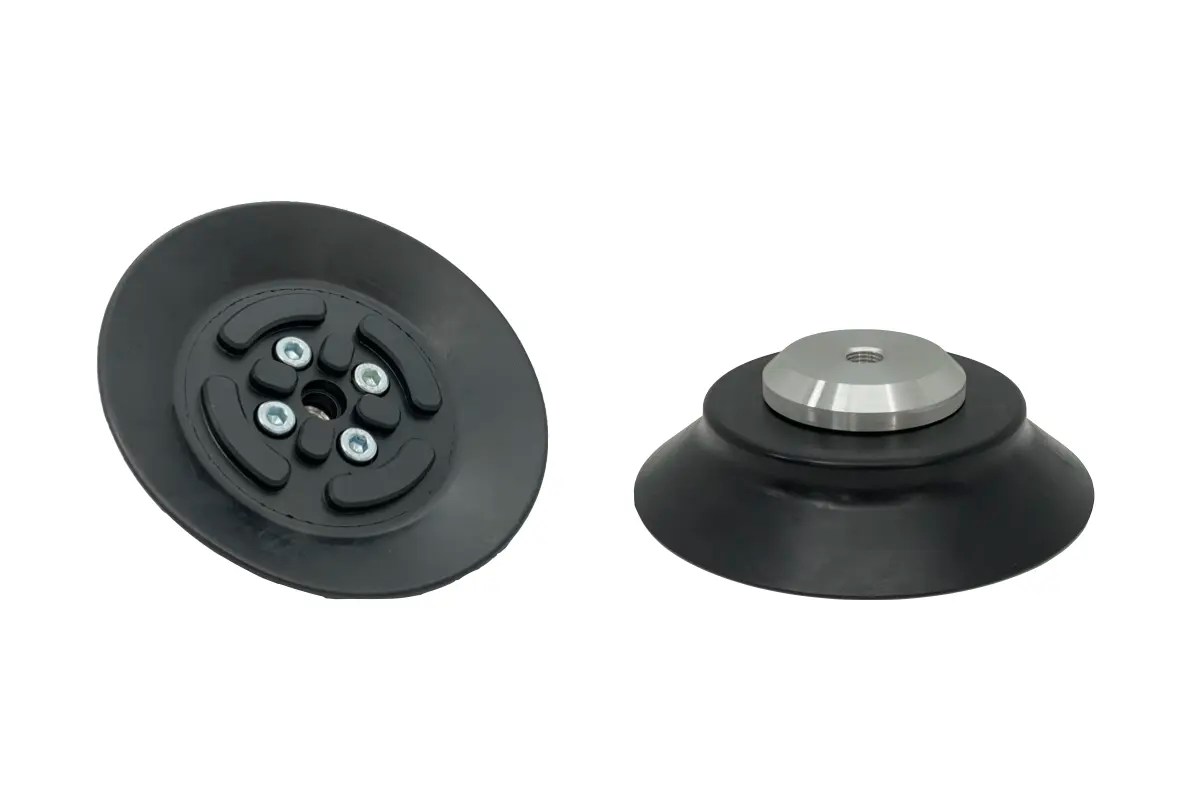

PFG-flat-suction-cups

EUROTECH vacuum technologies offers a comprehensive range of vacuum components as well as complete handling and transport solutions. Our further range includes both customer-specific vacuum suction cup portfolio or solution tailored to the customer’s requirements.

More details about vacuum components, please visit our general catalog.

PFG Series Adaptable (Single Lip Flat Cups)

PFG-Series-Flat-Cups
PFG 200 Type
Flat-Suction-Cup-150mm
PFG 150 Type
PFG-Series-Flat-Cups
PFG 50 Type
