Bellow Suction Cup 110 P​

Bellow Suction Cup 110 P

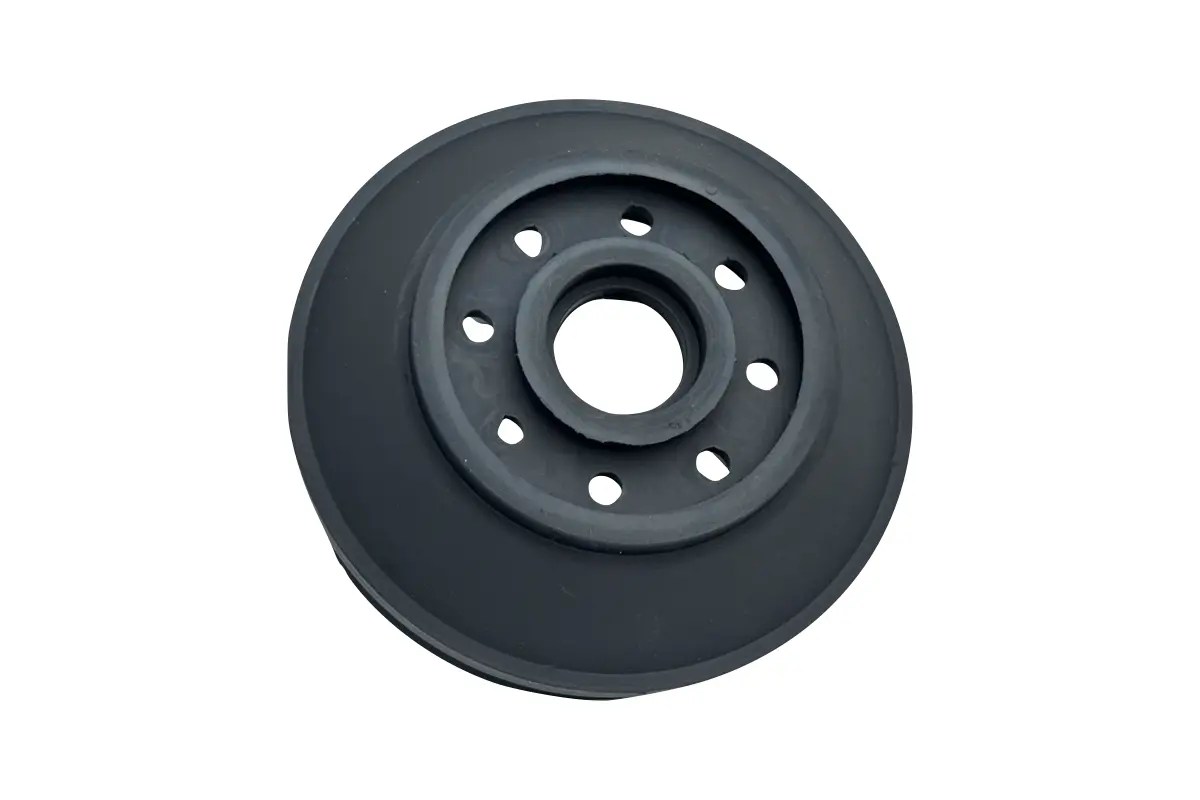

This special bellow suction cup seal Type BBSC series P is often used in automatic stacking systems. The robust and massive seal is in NBR black at approx. 50 Shore and is suitable for a slightly rough surface. The seal is suitable for heavy glass plates. The suspension bolt and the base plate can be made to your specification. Quick change of the rubber seal by loosening the four screws from the inside of the seal.

bellow-suction-cups
bellow-suction-cups
bellow-suction-cups

CO Bellows Suction Cup

  • Bellow suction cup with 1.5 folds, medium-length
  • Sealing lip and inner support strips for smooth and lightly structured surfaces
  • Diameter: 75 mm, 110 mm and 150 mm
  • Replaceable seal (clamped with clamping clip)
  • Aluminium base plate
  • Drilling template available on customer request

EUROTECH vacuum technologies offers a comprehensive range of vacuum components as well as complete handling and transport solutions. Our further range includes both customer-specific vacuum suction cup portfolio or solution tailored to the customer’s requirements.

More details about vacuum components, please visit our general catalog.
